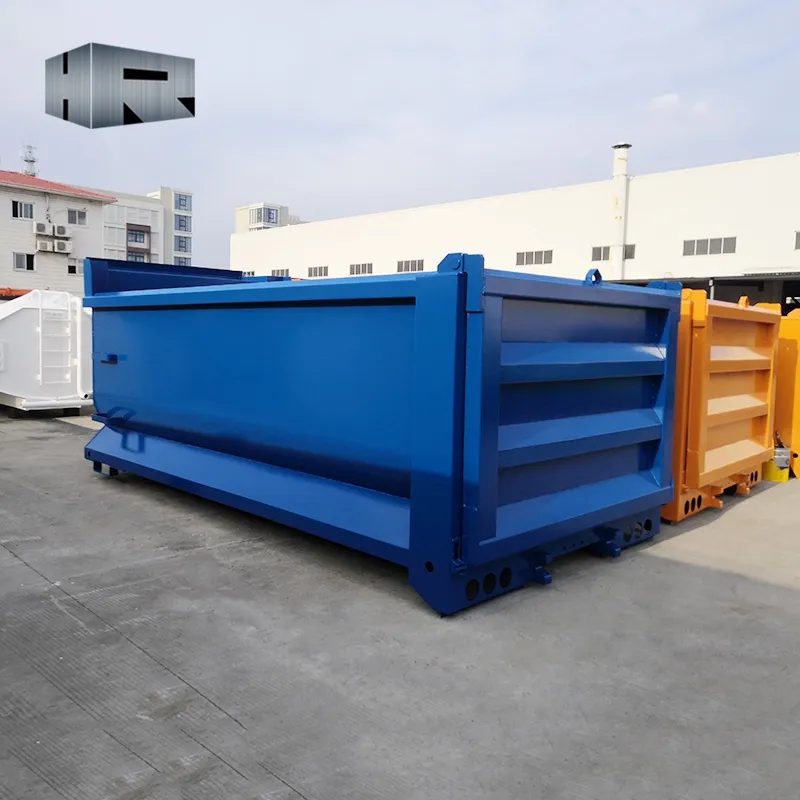

20 yard tipper truck for transporting dirt, gravel, or demolition waste

Rigid construction to last long

kategoria：

Self-tipping Truck Dumper
Näkymät：

3067
julkaisuaika：

2023-09-22 03:17:13

yksityiskohtainen esittely

Product Description

Hero equipment can design and produce some Container bodies, which are customized by buyers with special requirement. At present, we have manufactured the self-tipping truck dumper as per USA customer’s requirement, which is very satisfied by buyer. Welcome to contact us to get more details of the products.


Product Details

Material	Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade 350 (AUS), A210(USA).
Size Range	We can produce from 20 to 30m yd. And OEM is also available.
Thickness of plates used	10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to ur requirements
Other specifications	1). RHS are used for top rails, and top edge of plate continuous welded to RHS 2). Fully and partly welded inside and outside Hook bar: Dia 50mm Bottom chassis : PFC or 'I' beam, usually 200*75 PFC Curved sides are available Hinge and rollers with grease points
Options	1) Two openning door 2) Up openning door 3) HDG (Hot dipped galvanizing) 4) Crane eyes on top 5) Double spening door 6) Ladder in front or in the back
Painting	We will paint each bin you order in your company colours, enhancing your company image with great looking bins. Two times of primer + two times of top coat Primer : zinc-based epoxy (Grey) Top coat : Urethane (Any color)
